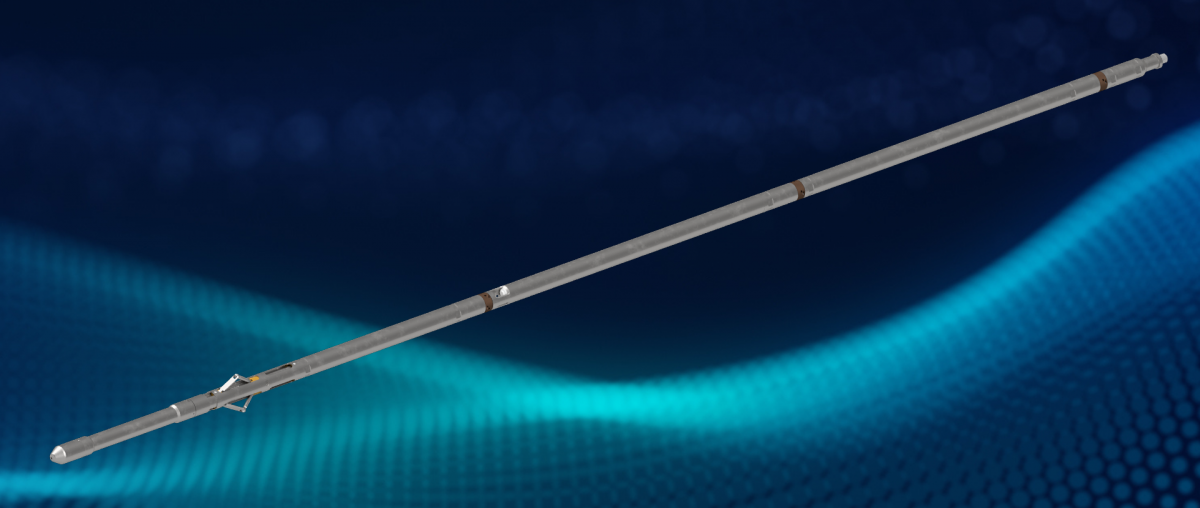

Nusonix Downhole Ultrasonic Tool (FOR SALE / RENT)

Technical specifications

Slickline conveyed 2.285” diameter memory logging tool:

• Initial tool – 8,000 psi (550 Bar), 110 °C, Sour service

• Operating range from 31/2” tubing to 20” casing

• Capable of measuring cement bond external to casing and cement quality

• Capable of measuring layered composites (GRE lined liners and flexible lines/hoses)

• Contactless sensor – No tubing/casing damage

• 360°, high resolution, high accuracy measurements

• Capable of measuring in pressured Gas (>435 psi (30 Bar)), as well as liquids (oil/water)

• Logging speed 10m/min (low resolution) 2m/min (Ultra-high resolution)

• Battery – 2000m continuous High-Res or 7000m low-Res measurements

• Tool length – ~ 4.0m

• Output data to industry standard well integrity (2D/3D) visualization packages allowing on-site analysis and a composite report. Complete field print of processed data ~ 60 mins.

  A compact, small-diameter production tubing and casing inspection tool featuring significantly improved resolution and accuracy compared to standard, first-generation ultrasonic tools. Use it to identify downhole leaks and integrity issues. While providing a direct measurement using the Cereus Engine to provide a step-change in fidelity both in the time and frequency domains, this contact-free technique avoids the potential for tubing damage associated with running mechanical tools such as multi-finger callipers.

  Nusonix has been engineered to be smaller and lighter than existing ultrasonic tools, making it both quicker to use and cost-effective to run. A complete report of processed data can be available on site within hours of completing a logging run.

  The system is ideal to rapidly validate the integrity of gas storage and CO2 sequestration wells.
