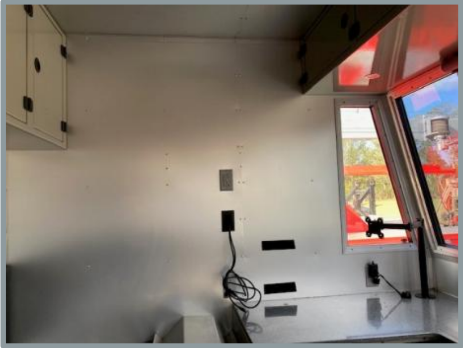

◆ OPERATOR CABIN
All aluminum constructed design

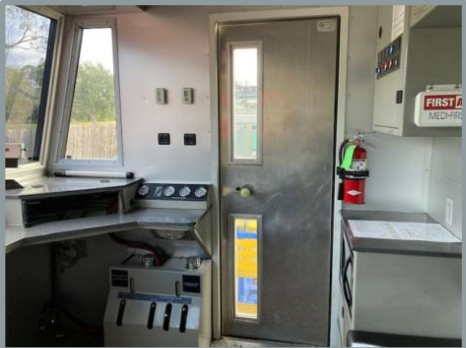

Single entry door

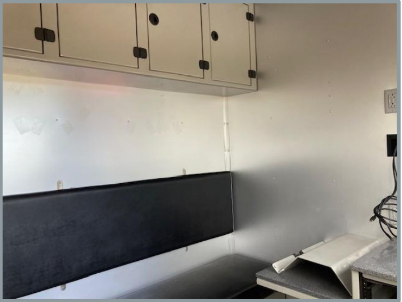

Rear bench seat with back rest and under storage
Cushioned operators chair

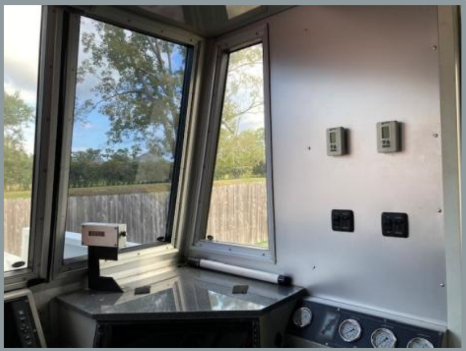

Large double glazed operators viewing windows at front and side

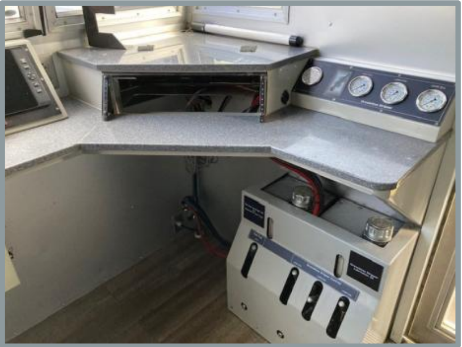

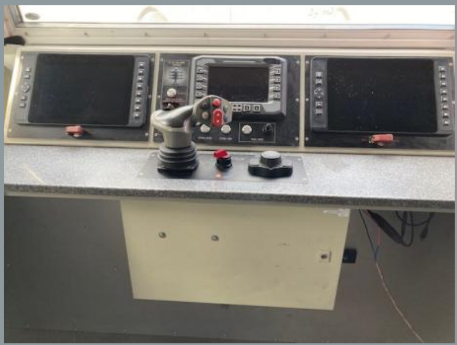

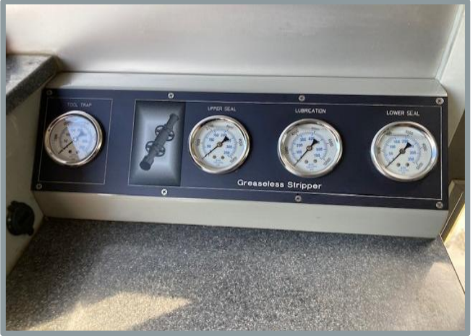

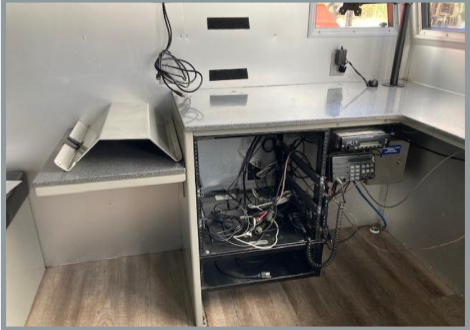

Operator workstation
Console includes black brushed stainless-steel overlay
Custom built Warrior system cabinet (Warrior system not included)

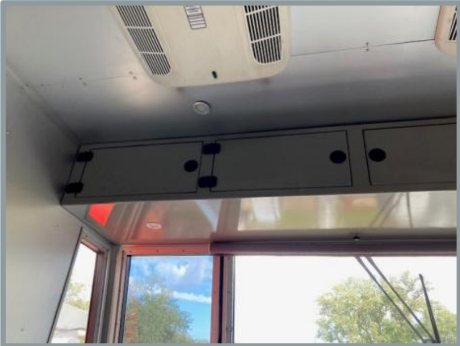

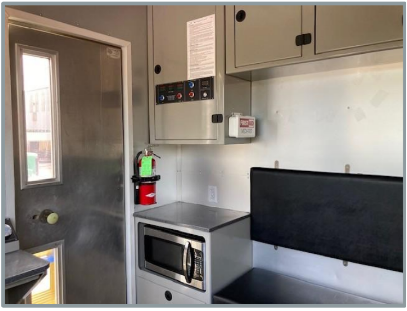

Overhead storage cabinet
Coffee maker
Microwave
Light table
Acrylic counter tops
PA system / radio
Closed loop hydraulic controls
Interior walls insulated and lined with aluminum finish
All cabinets with powder coated gray finish
Two roof mounted air-conditioners
Heater system
110-volt electrical interior and exterior lighting with camera system
Heavy duty rubber floor mat

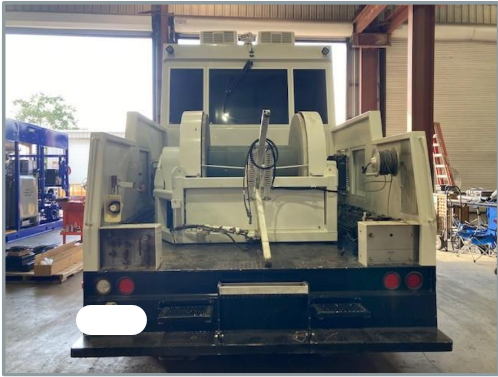

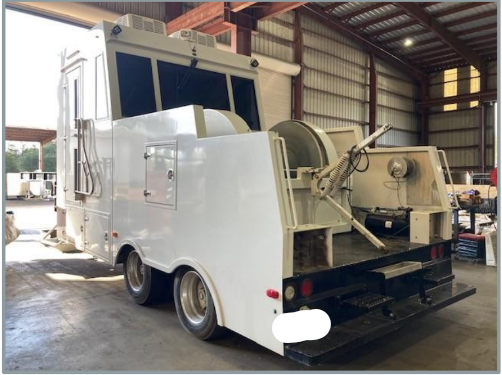

◆ WINCH PACKAGE

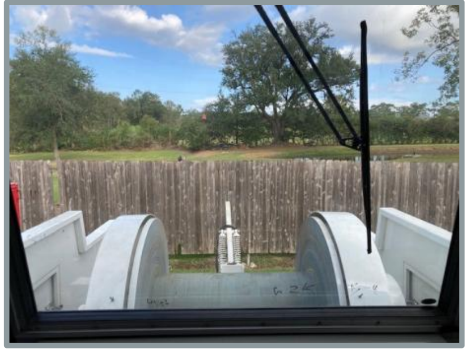

Steel constructed drum frame
50” flange drum x 20” core – .350 x 40,000 feet (wire not included)
Direct drive low speed high torque hydraulic motor
Dual brake bands with air brakes
Aluminum drum guards
◆ MEASURING HEAD
Overhead steering arm
Benchmark AM3K or Geolog measuring head (additional cost)
Benchmark or similar digital display panel (additional cost)
◆ POWER PACK FRAME
All steel constructed base skid with drain plugs
Forklift pockets
Corner mounted tie downs
Four-point lift
Steel enclosure with sound attenuation

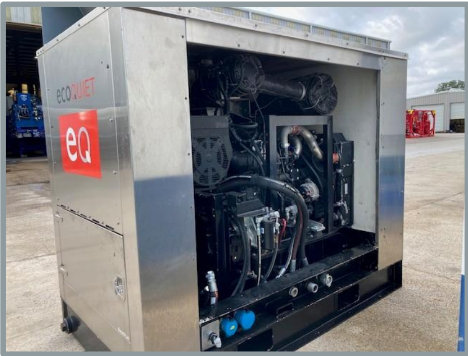

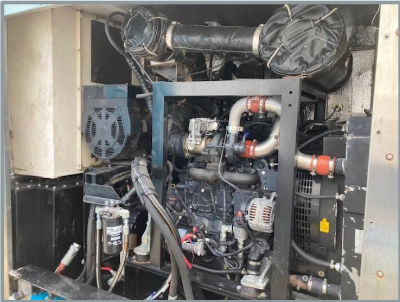

◆ POWER PACK ENGINE
FPT (Iveco / Fiat Powertrain Technologies) Model NEF45 / 138HP @ 2200 RPM
4 cylinder / 4.5L
Liquid cooled diesel
Turbocharged
Cooling package with radiator and charged air cooler
Air cleaner
Controls CE-8315-AS with full feature advanced auto start / stop and throttle
43L DEF Tank
◆ HYDRAULIC SYSTEM
Triple pump drive adapter
Danfoss 100CC closed loop hydraulic pump for winch operations
SMP3 piggy back hydraulic pump for auxiliary functions
65-gallon hydraulic tank with filtration system
Hydraulic oil cooler
Hose and fittings to complete plumbing of system
Marathon 20KW generator mounted in power pack module

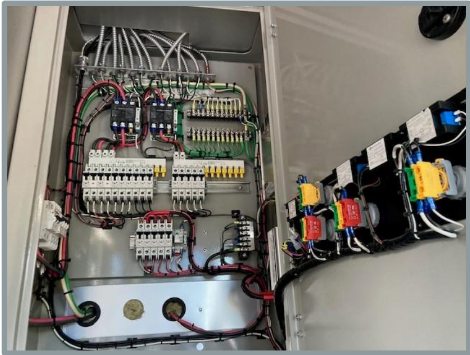

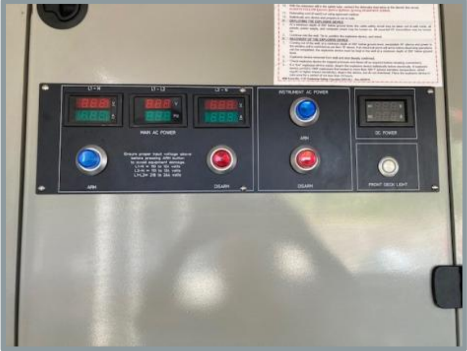

Main breaker panel
Power cord to operators’ cabin
◆ ELECTRIC SYSTEM
Marathon 20KW generator mounted in power pack module
Main breaker panel
Power cord to operators’ cabin
◆ PNEUMATIC SYSTEM
Electrically driven air-compressor permanently mounted on trailer
◆ ANCILLARIES

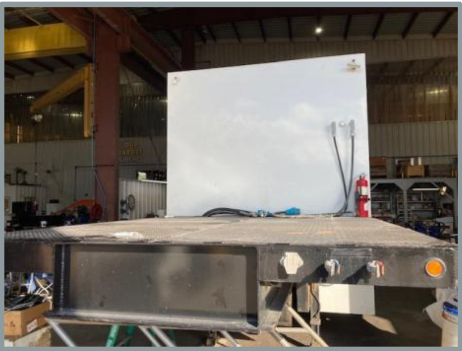

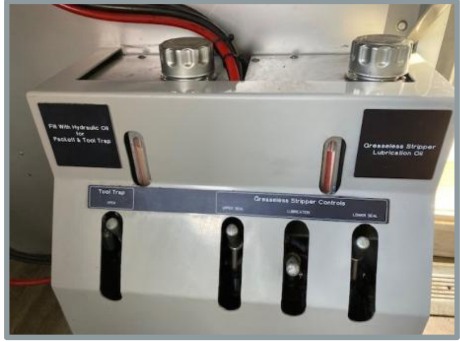

Eco-seal injection hand pumps with bulkhead connections at rear of trailer
Triple WLV control system complete with control panel & accumulator with bulkhead connections at rear of trailer

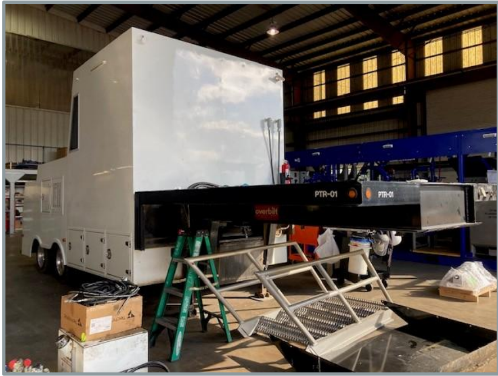

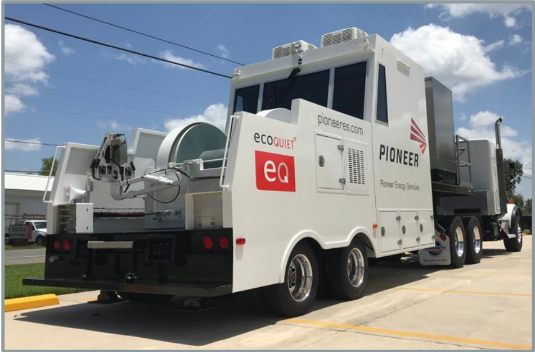

◆ TRAILER
28’ step deck trailer manufactured by Overbilt
8’6” wide with 18’ lower deck and 10’ upper deck
Two dual wheel 25,000 Lb. tandem axle assemblies with (8) 8 hole hub piloted wheels and 215/75R 17.5” tires
Air ride suspension with anti-lock brakes and two speed landing gear
3/16” steel tread plate floor with 20 ton carrying capacity
Sealed vapor proof LED lighting system with commercial
